From Palm-Size to Roll-to-Roll, Lab to Industrial: A Practical Scale-Up Roadmap for Nanofiber Membrane Production via Electrospinning
Electrospinning scale-up is not a simple multiplication of lab parameters. A recipe that works beautifully at 0.5 to 2 mL/hour can become unstable at 20 to 200 mL/hour, especially when multiple jets, wider deposition areas, solvent handling, web tension and long-duration operation enter the process.
Why Scaling Electrospinning Is Harder Than It Looks
Electrospinning can look deceptively simple in the laboratory. A syringe pump, a high-voltage supply, a collector and a stable polymer solution may produce excellent nanofibers under SEM. The fibers may show a narrow diameter range, clean morphology and promising performance for filtration, biomedical, energy or technical textile applications.
But when the same process moves toward pilot or industrial production, new problems appear. A small uniform deposit becomes patchy over 30 to 50 cm. Solvent odor becomes a safety and compliance issue. Beads, wet spots, fused fibers, clogging, thickness streaks and edge-to-center differences begin to affect product quality. This is not unusual; it is the normal shift from laboratory science to production engineering.
Short runs hide drift
A 10-minute lab run may look perfect, but viscosity drift, nozzle clogging and environmental variation become visible only during longer pilot and industrial runs.
Uniformity becomes critical
At wider deposition areas, cross-width uniformity, substrate compatibility, chamber conditions and cleaning frequency become decisive factors.
It becomes a production line
Industrial electrospinning requires controlled web handling, process automation, traceability, solvent-safe architecture and defined QA/QC methods.
What Is Electrospinning Scale-Up?
Electrospinning scale-up is the transition from laboratory nanofiber formation to pilot and industrial nanofiber membrane manufacturing. The objective is not only to increase output, but to preserve the properties that made the lab membrane valuable in the first place.
Scale-up means preserving four things at the same time
- Fiber morphology stability: diameter distribution, beading frequency, surface texture and fiber fusion behavior.
- Membrane structure consistency: thickness, basis weight, porosity, pore size distribution, texture and layer adhesion.
- Functional performance: filtration efficiency, pressure drop, mechanical strength, conductivity, wettability or other application-specific metrics.
- Reproducibility over time: stable performance not only for minutes, but for hours, shifts and repeated production batches.
Why Great Lab Nanofibers Fail at Pilot or Industrial Scale
Humidity and climate variability become dominant variables
In short laboratory runs, room conditions may seem acceptable. At pilot and industrial scale, temperature and humidity drift can cause beads, ribbon fibers, fused fibers, surface roughness changes, adhesion problems and shifts in diameter distribution.
Solvent handling changes from smell to safety, compliance and cost
As solvent consumption increases, vapor control becomes a facility-level issue. Industrial systems need controlled exhaust paths, safe electrical design, vapor management and, in many cases, solvent recovery planning.
Lab collectors do not automatically translate to production
A static plate or aluminum foil may be fine for proof of concept. Production requires rotating drums, moving belts or roll-to-roll substrates with controlled grounding, tension, adhesion behavior and cleaning access.
Deposition uniformity becomes the product
Customers judge the weakest part of the membrane roll, not the best SEM image. Center-to-edge variation, local thin spots, thick bands and basis weight variation can define whether a product is accepted or rejected.
Multi-hour stability reveals problems that short demos hide
Long runs expose viscosity drift, gradual nozzle clogging, pump accuracy limitations, solution aging, deposit accumulation and electric field changes. A 15-minute demo is not an industrial validation.
A Practical Scale-Up Roadmap
A reliable scale-up journey is staged. Skipping from a palm-size lab membrane directly to a 1-meter industrial roll is one of the most common causes of technical and financial risk.
Lab Validation
Goal: prove the polymer solution, material concept and process window.
- Identify stable polymer concentration and solvent ratio
- Define voltage, flow rate and distance ranges
- Understand humidity and temperature sensitivity
- Collect baseline SEM and functional performance data
Pre-Pilot Repeatability
Goal: make the process repeatable and start thinking like a manufacturer.
- Repeat trials over multiple days
- Test substrate compatibility
- Define basic environmental control strategy
- Identify clogging and cleaning frequency
Pilot or Semi-Industrial Line
Goal: validate continuous nanofiber production logic before full-scale investment.
- Continuous substrate feeding and winding
- Multi-hour run stability
- Basis weight control across width and time
- Documented cleaning and uptime
Industrial Roll-to-Roll
Goal: produce sellable nanofiber membrane products with industrial QA/QC.
- Closed-loop web tension control
- Chamber climate control

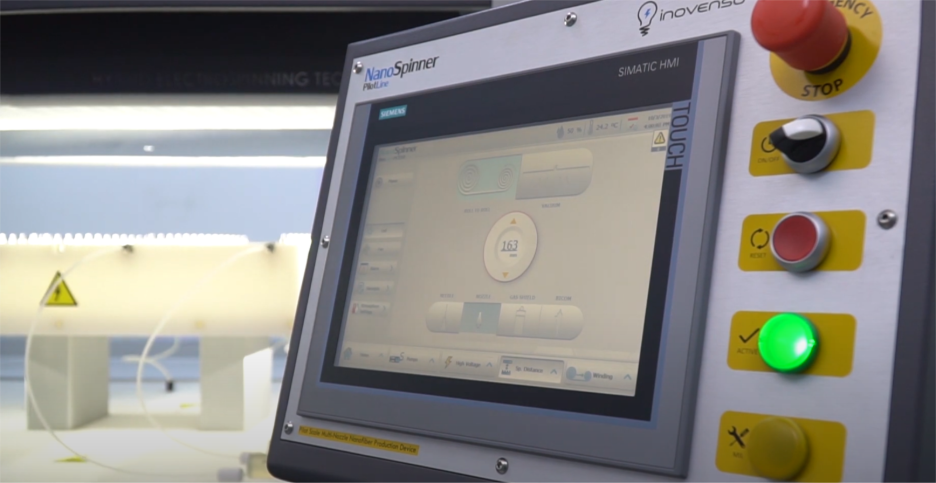

- Automation, recipe systems and data logging
- Defined QC methods and acceptance limits

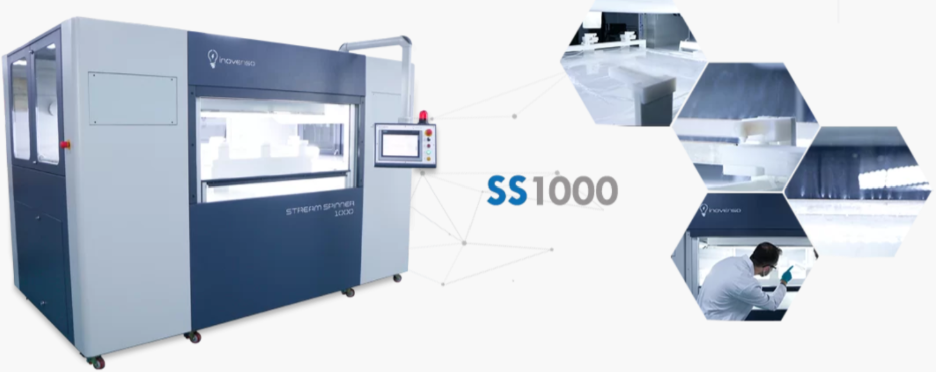

What 1-Meter Roll-to-Roll Electrospinning Really Implies
A 1-meter roll-to-roll electrospinning line is not only a larger nanofiber machine. It is a complete manufacturing system where nanofiber deposition is one module within a larger production architecture.
Statistical QC
At industrial scale, visual inspection is not enough. You need basis weight, thickness, tensile strength, air permeability, pressure drop and defect mapping data.
Cross-Width Uniformity
Your customer judges the worst part of the roll. Maximum deviation across width and consistency between rolls become key production metrics.
Web Tension Control
Tension is not only mechanical. It affects deposition thickness, layer density, lamination behavior, cutting quality and downstream processing.
Field Stability
Large width means larger electrodes, more complex grounding and higher sensitivity to geometry. Field instability creates hot zones, dead zones and non-uniform morphology.
Technical Comparison: Lab, Pilot and Industrial Electrospinning
| Parameter / Factor | Lab R&D | Pilot Scale | Industrial Roll-to-Roll |
|---|---|---|---|
| Output scale | mg/h to low g/h | g/h to early m²/h | Continuous m²/h production rolls |
| Typical run duration | 10 to 60 minutes | 2 to 8 hours | 8 to 24 hours or multi-shift operation |
| Environment | Open room or basic enclosure | Controlled enclosure | Closed-loop climate chamber |
| Solvent handling | Minimal or fume hood | Enhanced exhaust system | Integrated exhaust and optional solvent recovery |
| Collector system | Static plate or small drum | Moving belt, drum or controlled deposition area | Full web handling and precision tension control |
| Automation level | Manual parameter adjustment | Partial recipe control | PLC / recipe control / data logging |
| Quality control | SEM and basic physical testing | SEM and basis weight mapping | SPC, sampling plans and full traceability records |
What Buyers Should Demand Before Believing Scale-Up Claims
In the electrospinning market, terms like “industrial ready,” “high throughput,” “uniform deposition” and “easy scaling” are common. These claims are only meaningful when supported by comparable data.
Technical proof
- Throughput in g/h or m²/h at defined basis weight
- Cross-width basis weight variation data
- SEM-based fiber diameter statistics
- Continuous run duration validation
- Solvent consumption and handling data
Scalability proof
- Upgrade path from pilot width to wider production
- Modular spinning head or capacity expansion strategy
- Recipe storage and operator-independent repeatability
- Cleaning schedule and spare part plan
- Architecture that avoids “dead-end machines”
Commercial proof
- After-sales support structure
- Installation and facility integration requirements
- Electrical, exhaust, grounding and HVAC needs
- International logistics and delivered cost
- Total cost of ownership calculation
Pros and Cons of Scaling Electrospinning to Industrial Production
Advantages
- Enables nanofiber membranes with unique porosity and surface area
- Supports functional materials and multilayer structures
- Can be adapted to filtration, medical, energy and technical textile applications
- Roll-to-roll systems can produce consistent industrial products when engineered properly
Challenges
- Environmental sensitivity requires controlled chambers
- Solvent handling can be costly and complex
- Uniformity across width requires robust field engineering
- Maintenance and cleaning can reduce uptime if not designed well
- Scaling claims must be verified with real production data
Planning to scale nanofiber membrane production?
Share your polymer system, solvent, target membrane width, target basis weight, production volume and application requirements. Inovenso can help you identify the right path from laboratory validation to pilot and industrial roll-to-roll electrospinning.
How to Choose the Right Scale-Up Partner
For organizations aiming to move from R&D nanofiber development to pilot and industrial roll-to-roll membrane production, the equipment supplier should understand both electrospinning physics and manufacturing constraints.
- Engineering depth: field geometry, climate control, web handling, automation, solvent management and serviceability.
- Proof over promises: long-duration runs, cross-width basis weight variation and documented QC methods.
- Scalability path: modular capacity expansion, upgrade options and future production width planning.
- International readiness: installation, training, spare parts, remote support and documentation quality.
- Total cost of ownership: yield, scrap rate, solvent cost, downtime, maintenance and training.
Inovenso designs and manufactures electrospinning machines across lab, pilot and industrial scale-up needs for nanofiber membrane production. This allows customers to move from formulation development to continuous membrane production with a more practical, production-focused engineering approach.
Frequently Asked Questions
Why do nanofibers that look perfect in the lab fail during pilot production?
Because pilot production exposes variables that short lab runs often hide: humidity drift, solvent vapor accumulation, field geometry changes, substrate handling issues, clogging and solution viscosity drift.
What is the most important requirement for industrial electrospinning scale-up?
Closed-loop process stability. This includes controlled climate, stable solution delivery, stable electric field geometry, controlled web movement and a QC system that verifies uniformity across width and time.
What does roll-to-roll electrospinning mean in manufacturing terms?
It means nanofibers are deposited continuously onto a moving substrate that is unwound and rewound as a roll. This requires tension control, winding quality and consistent deposition across the full web width.
What data should I request before purchasing an industrial electrospinning line?
Ask for throughput at defined conditions, cross-width basis weight variation, fiber diameter distribution, continuous run duration, solvent handling information, installation needs, cleaning schedule and upgrade path options.
Is it better to scale using needle-based or needleless electrospinning?
It depends on the product, throughput target and uniformity requirement. Needle-based systems can offer precise control, while needleless systems may offer high throughput potential. The right choice should be validated with pilot-scale data.
What is a practical scale-up path from lab to 1-meter industrial production?
Lab validation, pre-pilot repeatability, pilot continuous runs with QC, then industrial roll-to-roll production with closed-loop tension, climate control, automation and data logging.
Conclusion
Scaling nanofiber membrane production via electrospinning from palm-size lab samples to industrial roll-to-roll manufacturing is possible, but it requires disciplined engineering. The biggest risk is assuming that a beautiful lab membrane automatically translates into a stable manufacturing process.
A successful scale-up program focuses on controlled environment, solvent-safe architecture, collector and field geometry, web handling, automation, data logging, maintainability and transparent production data. For teams moving from R&D to pilot and industrial membrane production, choosing a manufacturer with proven scale-up experience and strong process control architecture can be the difference between a successful product and a stalled pilot project.
References
- Doshi, J., Reneker, D.H. “Electrospinning process and applications of electrospun fibers.” Journal of Electrostatics, 1995.
- Reneker, D.H., Yarin, A.L. “Electrospinning jets and polymer nanofibers.” Polymer, 2008.
- Ramakrishna, S. et al. An Introduction to Electrospinning and Nanofibers. Cambridge University Press.
- Pisignano, D. Polymer Nanofibers: Building Blocks for Nanotechnology. Royal Society of Chemistry, 2013.
