IPS-13 SERIES SINGLE CHANNEL SYRINGE PUMPS

IPS-13

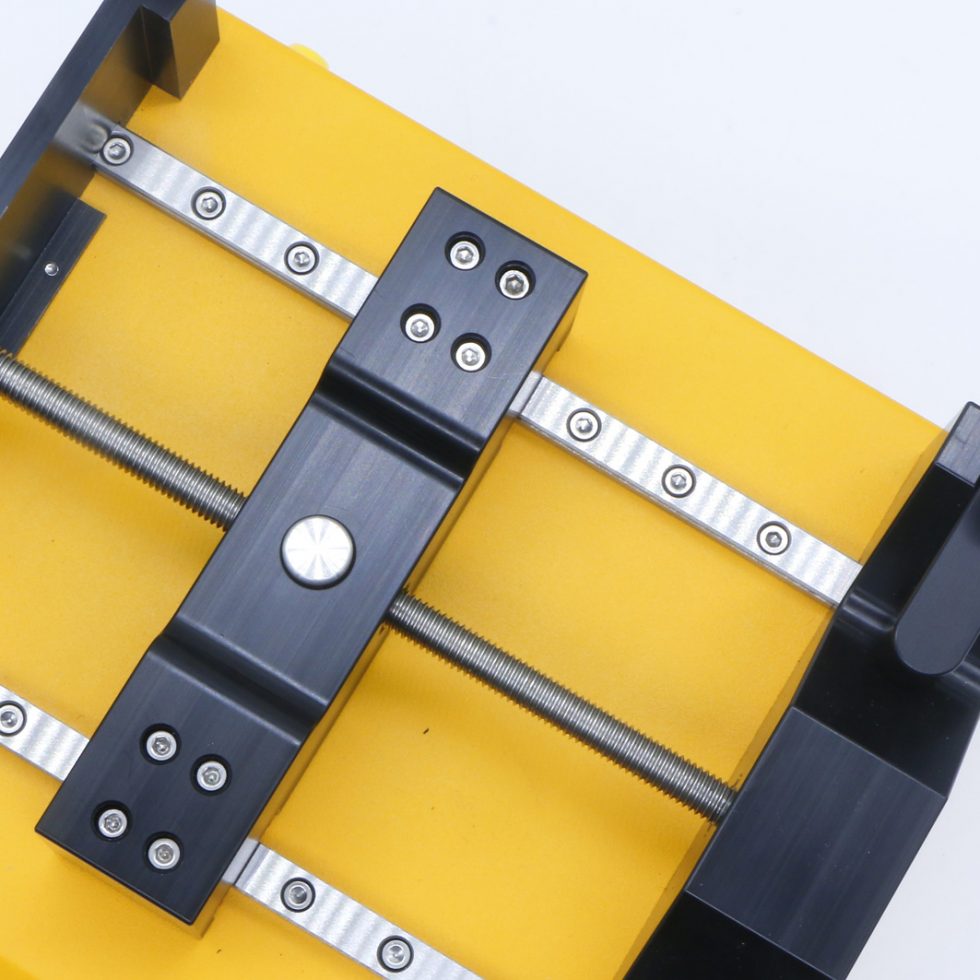

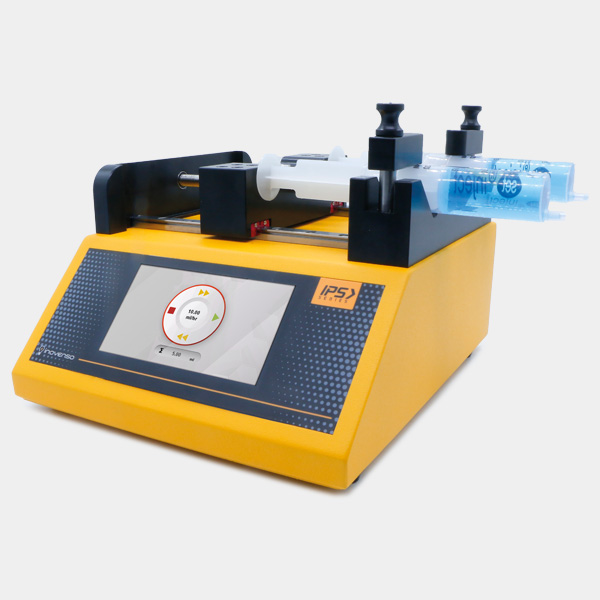

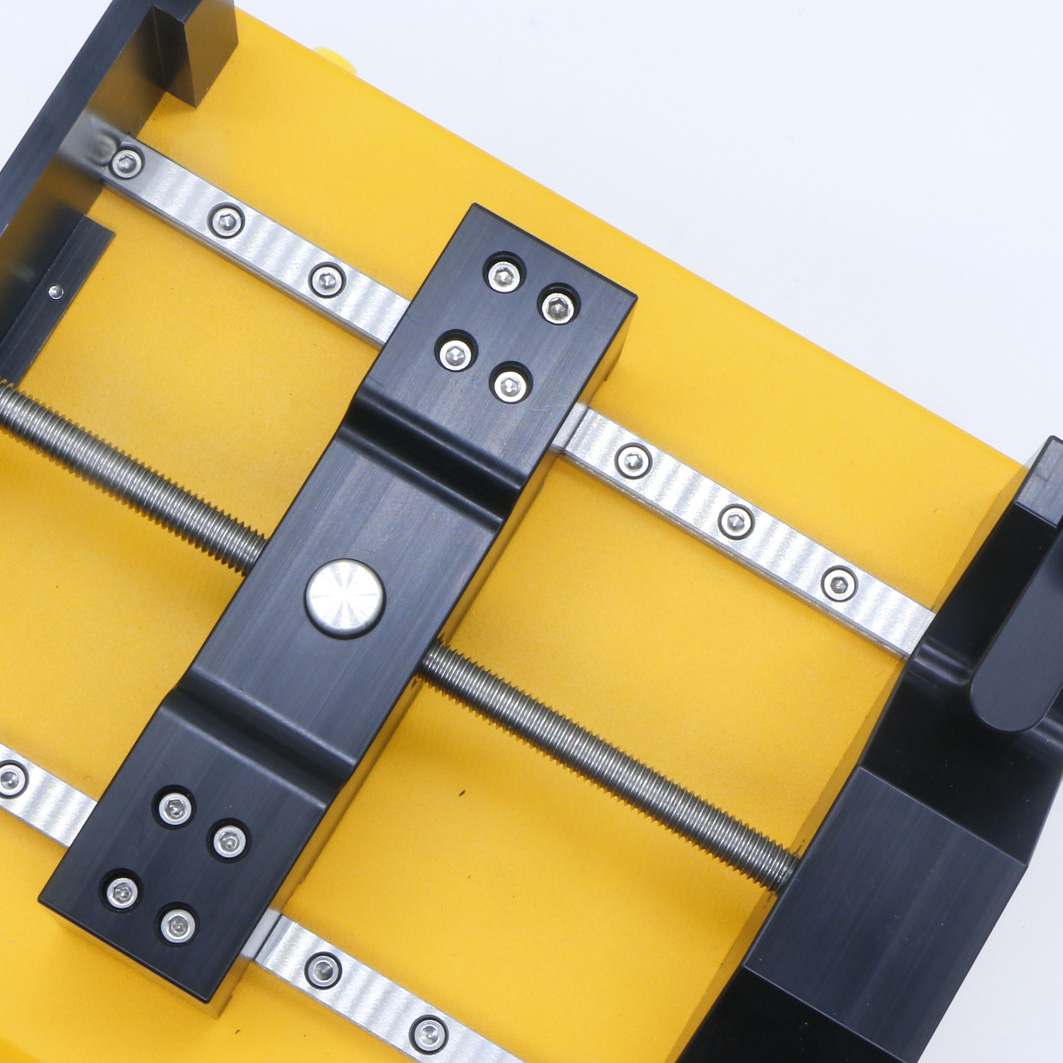

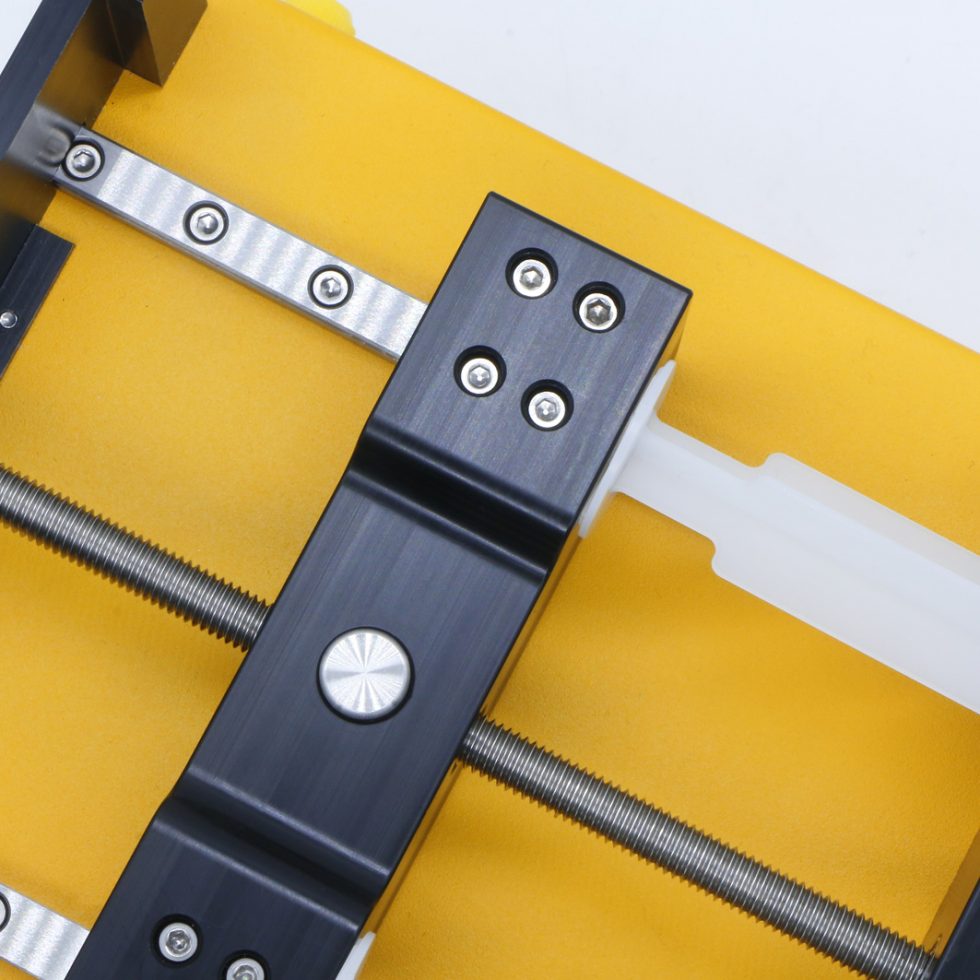

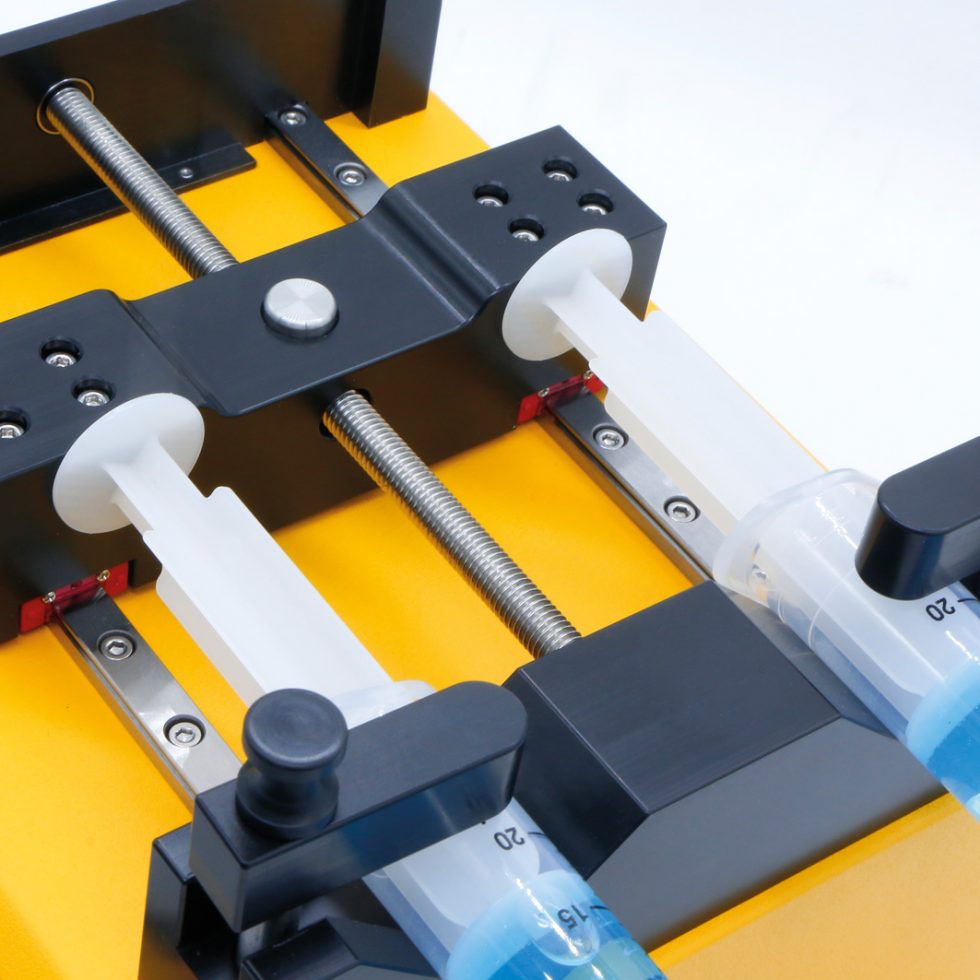

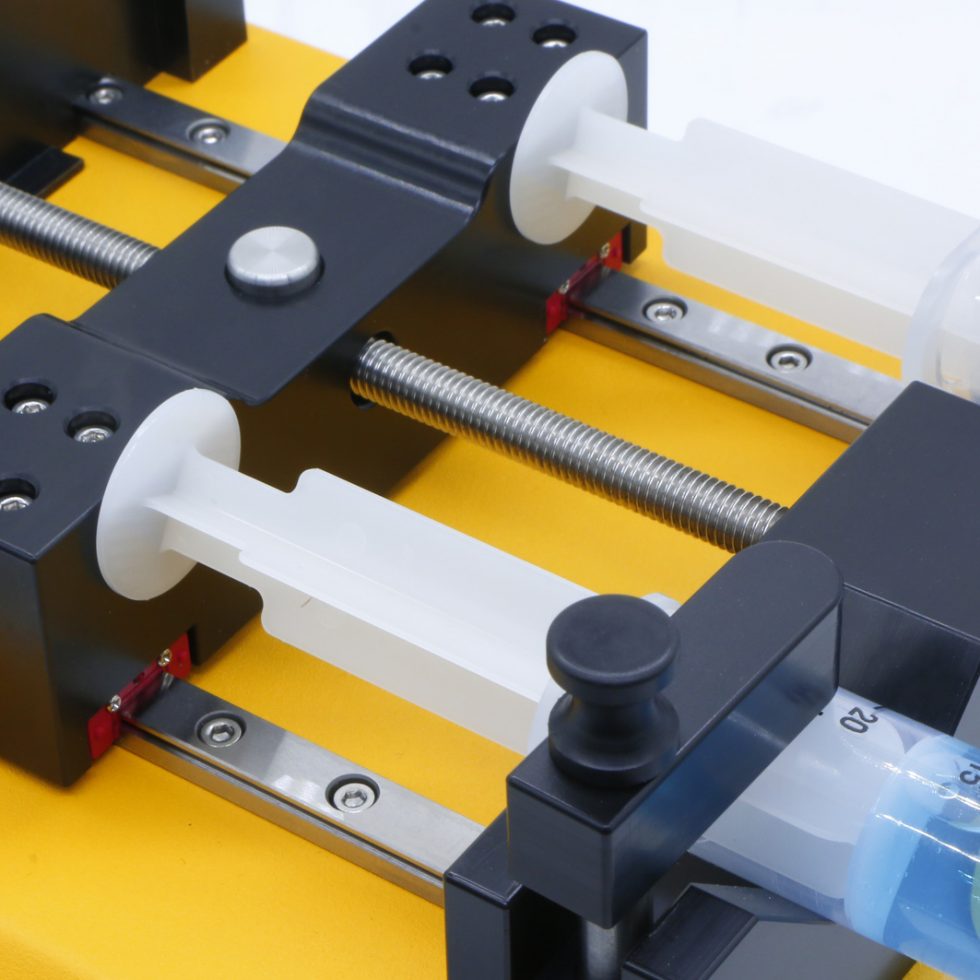

IPS-13 Syringe Pump

The IPS-13 Syringe Pump is a highly versatile and precision-engineered device designed to meet the diverse fluid handling needs across various industries. With its advanced features and robust construction, the IPS-13 offers reliable performance and precise control over fluid delivery processes.

Key Features:

  • Interdependent Syringe Channels: The IPS-13 features two interdependent syringe channels, allowing for simultaneous and coordinated fluid handling operations. This feature enhances efficiency and flexibility in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-13 accommodates syringes made of glass, plastic, and steel, offering versatility in fluid handling applications. It supports syringes ranging from Hamilton 0.5 μl to Monoject 140 ml, providing flexibility to users for different volume requirements.
  • Precise Flow Control: With a broad flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13 ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates, guaranteeing reliable performance in various tasks.
  • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and powered by user-friendly microcontroller software, the IPS-13 offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: The IPS-13 allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters as needed for optimal performance. This adaptability ensures versatility in handling diverse fluid handling tasks with precision and control.

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: Yes (Wi-Fi optional)
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 200 mm, Length (L): 250 mm, Height (H): 143 mm
  • Weight: 2.9 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)

Additional Features:

  • Double Channel design for simultaneous operation
  • Wi-Fi connectivity (optional)

IPS-13R

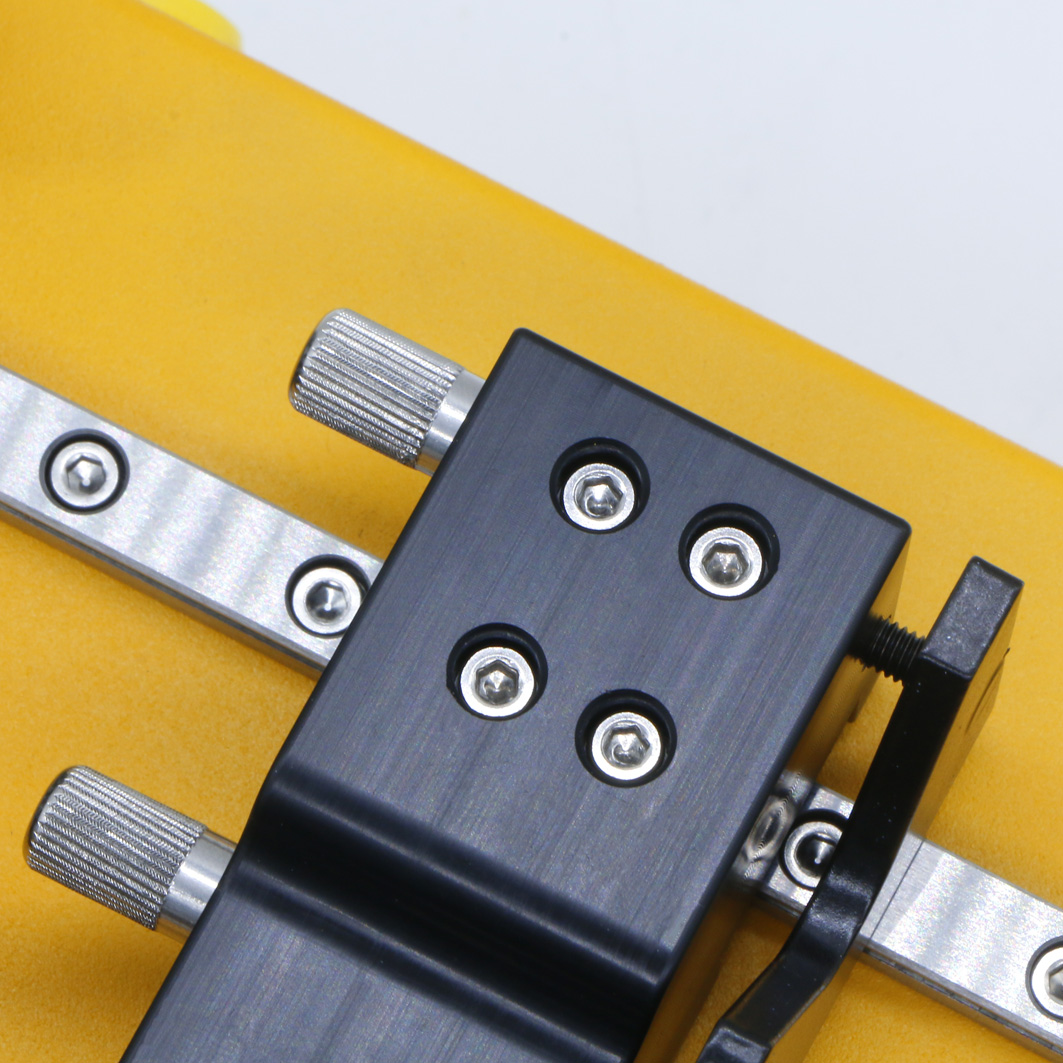

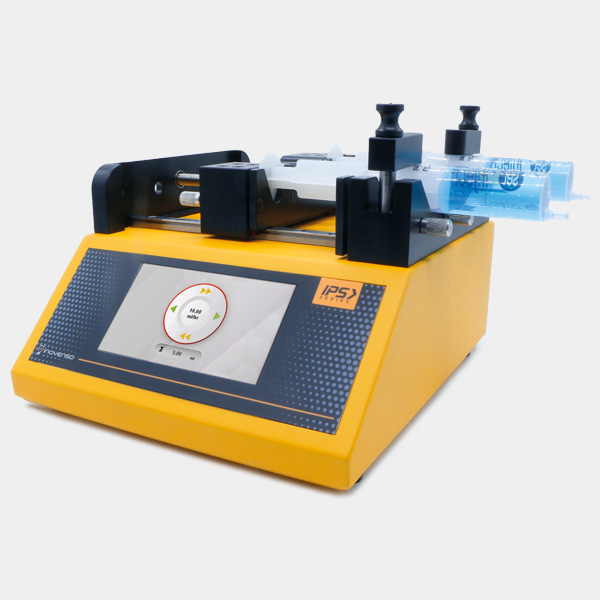

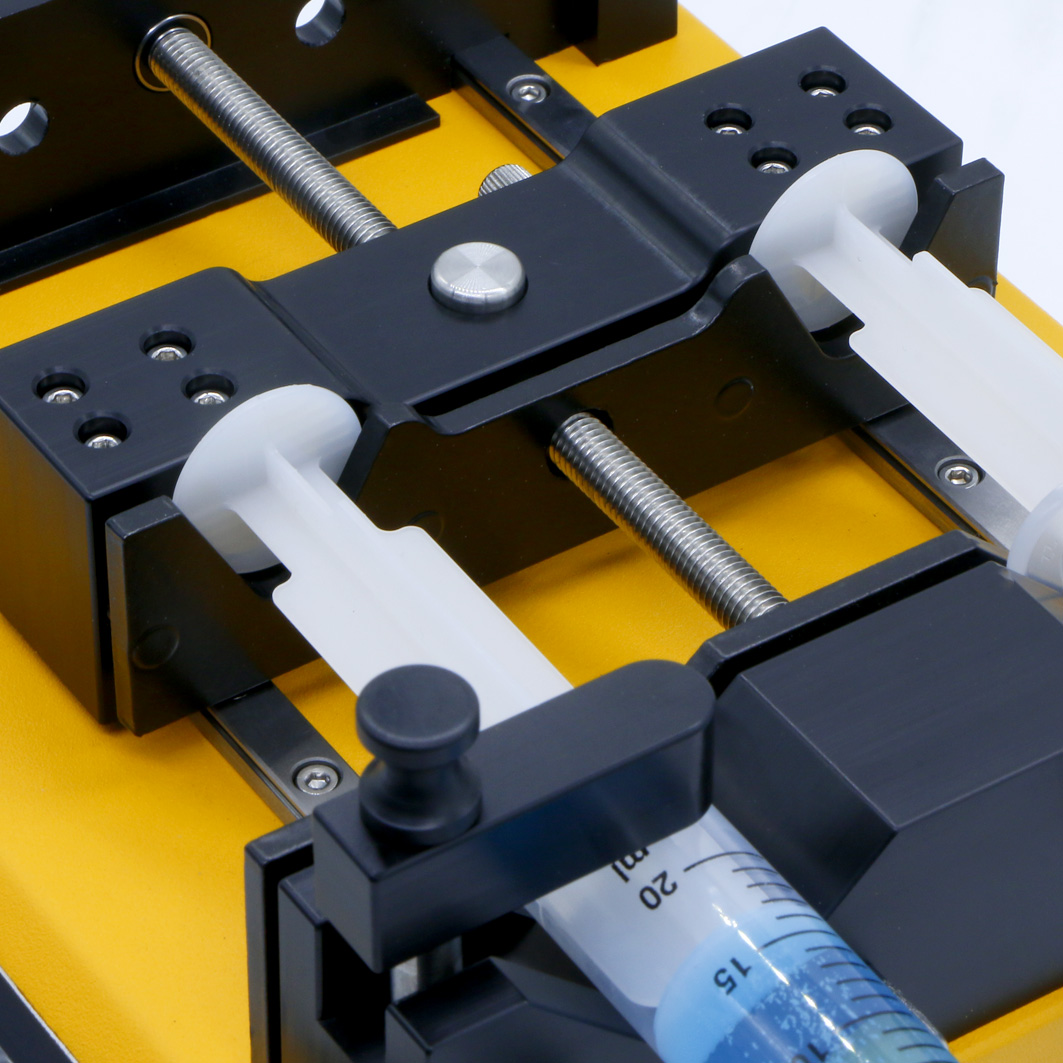

IPS-13R Syringe Pump

The IPS-13R Syringe Pump is an advanced dual-channel device designed to fulfill complex fluid handling requirements across various industries. With its precision engineering and innovative features, the IPS-13R ensures reliable performance and precise control over fluid delivery processes.

Key Features:

  • Interdependent Syringe Channels: Equipped with two interdependent syringe channels, the IPS-13R enables simultaneous and coordinated fluid handling operations, optimizing efficiency and flexibility in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-13R supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements.
  • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13R ensures precise and consistent fluid delivery. Its stepper motor, coupled with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep.
  • Intuitive Interface: The IPS-13R is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: Yes (Wi-Fi optional)
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 211 mm, Length (L): 250 mm, Height (H): 143 mm
  • Weight: 3.2 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)

Additional Features:

  • Double-channel design for simultaneous operation
  • 4.3” Resistive Touch TFT LCD screen
  • Microcontroller software for advanced control
  • User-friendly interface for ease of operation
  • High-precision pumping for accurate fluid handling

IPS-13S

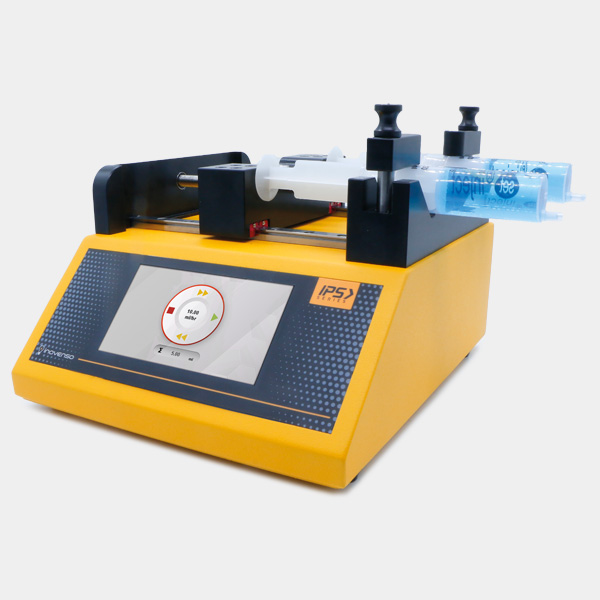

IPS-13S Syringe Pump

The IPS-13S Syringe Pump is a sophisticated dual-channel device designed to meet the complex fluid handling requirements in various industries. With its advanced features and precision engineering, the IPS-13S ensures reliable performance and precise control over fluid delivery processes.

Key Features:

  • Interdependent Syringe Channels: Equipped with two interdependent syringe channels, the IPS-13S allows for simultaneous and coordinated fluid handling operations. This feature enhances efficiency and flexibility in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-13S supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements.
  • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13S ensures precise and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep.
  • Intuitive Interface: The IPS-13S is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.
  • Additional Features:
    • 5 Steps Operation Mode
    • Saving and Recalling Subsequently Up to 5 Recipes
    • Repeating recipes up to 50 Cycles
    • Double-channel design for simultaneous operation
    • Wi-Fi connectivity for enhanced functionality

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: Yes (Wi-Fi optional)
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 200 mm, Length (L): 250 mm, Height (H): 143 mm
  • Weight: 2.9 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)

IPS-13RS

IPS-13RS Syringe Pump

The IPS-13RS Syringe Pump is an advanced dual-channel device designed to meet the complex fluid handling requirements in various industries. With its precision engineering and innovative features, the IPS-13RS ensures reliable performance and precise control over fluid delivery processes.

Key Features:

  • Interdependent Syringe Channels: Equipped with two interdependent syringe channels, the IPS-13RS allows for simultaneous and coordinated fluid handling operations. This feature enhances efficiency and flexibility in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-13RS supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements.
  • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13RS ensures precise and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep.
  • Intuitive Interface: The IPS-13RS is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.

Additional Features:

  • 5 Steps Operation Mode
  • Saving and Recalling Subsequently Up to 5 Recipes
  • Repeating recipes up to 50 Cycles
  • Double-channel design for simultaneous operation
  • Wi-Fi connectivity for enhanced functionality

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: Yes (Wi-Fi optional)
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 211 mm, Length (L): 250 mm, Height (H): 143 mm
  • Weight: 3.2 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)
